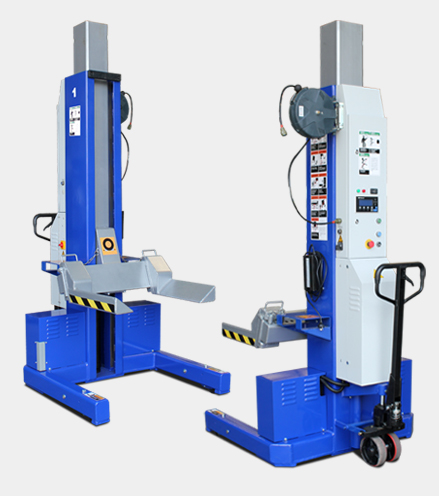

Product Name : 167218B
Description
- User-friendly operation through selector buttons on master controller for individual, paired & synchronized
   operation
- SIMENS   PLC computer and rotating encoder provide continuous synchronization of all columns
- Unique “C” cable connection
- Adjustable lifting forks accommodate the widest range of wheels without wheel reducer sleeves
- Front wheel on the pallet jack for easy movement of the columns
- Heavy duty hydraulic system and bearings on carriages provide efficient, fast & easy lifting
- Communication & electrical cables with double ends in horseshoe wiring make vehicle driven in or out easily
   without disconnecting cables
- LCD screen with keyboard provides mutiple settings and vision of lifting height
- Independent mechanical locking system & emergency switch on every column provide highest safety insurance
Special Feature


LCD screen with keyboard offers easy to read visuals of multiple settings and lifting height



Heavy-duty pallet jack allows easy movement of the columns



Communication cables retractable to hose reels are optional for easy connection and disconnection as well as trouble free of cable crashed around the shop.



Adjustable pick-up forks match up with the tyres.
Adjustable lift forks width Standard 280mm length pick-up fork's width can be adjusted to accommodate small wheels
Technical Data
Model 167218B
Specifications
Lifting height 5~1700 mm ( 1/4"~66" )
Lifting Capacity 9000 kg ( 19800 lbs ) / each column
Lifting/Lowering Time at Rated Load 100 / 60 sec
Max. Floor Surface Pressure ( Per Front Wheel ) 3200 kg ( 7000Ibs )
Height Overall 2250 mm ( 88-37/64" )
Width Overall 1120 mm ( 44-3/32" )
Max. Distance Between Lifting Columns 9 m ( 29-1/2’ )
Electrical supply cable length 20 m ( 65-5/8' )
Column interconnection cable length

9 m x 1 pc, 12 m x 2 pcs( 4units/set )

29-1/2' x 1pc, 39-3/8' x 2 pcs

Operation Voltage 24 V
Power 12 V DC
Noise Level Max 73db ( A )
Net Weight 700 kg ( 1540Ibs )
Quantity in 20” Container 10 units
Quantity in 40” Container 20 units
Packing Size 1446 x 1120 x 2250 mm
( 56-15/16" x 44-3/32" x 88-37/64" )
