Product Name : 167261
Description
   - Single post with minimum height saves space

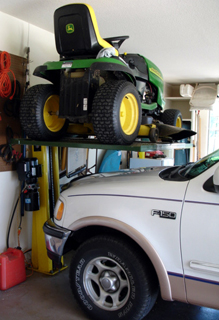

   - Suitable for garage as well as residential use
   - Heavy steel construction with reliable Duro power unit
   - Automatic safety locks provide great safety insurance
   - Removable center platform for convenient access to the under parts of the raised vehicle
Special Feature

Technical Data
Model 167261

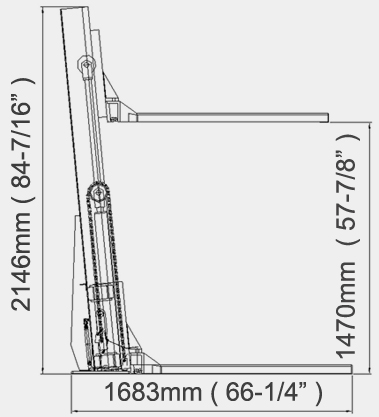

Height overall 2146 mm ( 84-7/16" )

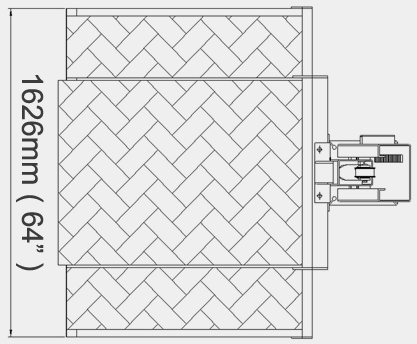

Width overall 1626 mm (64" )
Length overall

1683 mm ( 66-1/4" )

Lifting height

55 mm ( 2-3/16" ) ~ 1470 mm ( 57-7/8" )

Lifting capacity 1000 kg ( 2200 lbs)
Power 440V / 50Hz ( 220V / 50Hz )
Net weight 258 kg ( 568 lbs )
Gross weight 270 kg ( 594 lbs )
