Product Name : 165924F

Description

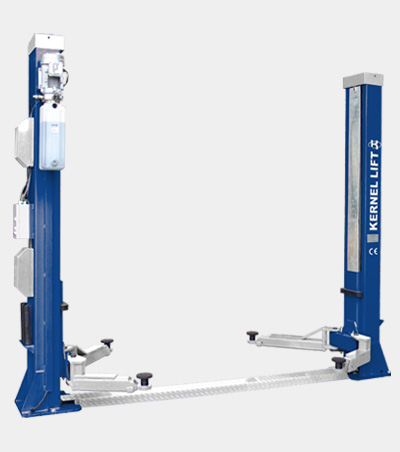

- Heavy-Duty Electro-Hydraulic 2-Post Lift
- 2 Chain-Over Push Cylinders
- Original “Duro” Electro-Hydraulic Power Unit
- Electro-Magnetic Lock Release System
- Safety Shut-Off System
- Unique Three-Stage Asymmetric Lift Arms
- Door Protection Rubber Pads
- Automatic/Manual Arm Restraints Allow for Easy Lift Arm Positioning
- One-Hand Operating Push Buttons
- Special Designed Metal Cylinder Protector
- Safety Equipment with CE-Stop
- Wider Drive-Through Between Columns
- Easy-Operating Emergency Release Devices

Special Feature

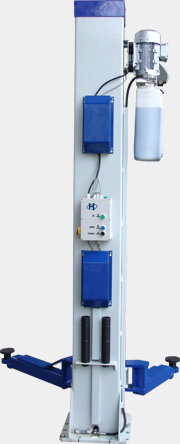

Special Designed Cylinder
Protection Cover Plate

         Original "Duro" Power Unit with Special
         Designed
         Easy-Operating Emergency Release
         Device Provide Reliable Performance

Technical Data

Model	165924F
Principal Specifications
Lifting Capacity	3.5T, 3.2T, 3.0T
Type	2 Chain-Over Hydraulic Cylinders Synchronized by Cables
Arms	Asymmetrical 3-Stage Arm. Front Arm: 850~1,840 mm Rear Arm: 590~1,208 mm
Lifting Height	1,860 mm
Rising/Lowering Time	<70s / 25s
Operating Hydraulic Pressure, Max.	20 Mpa
Lifting Pads
Height, Min.	91 mm
Adjustment Height	35 mm
Three Extension Height	50 mm + 100 mm + 150 mm
Saddle Diameter	120 mm

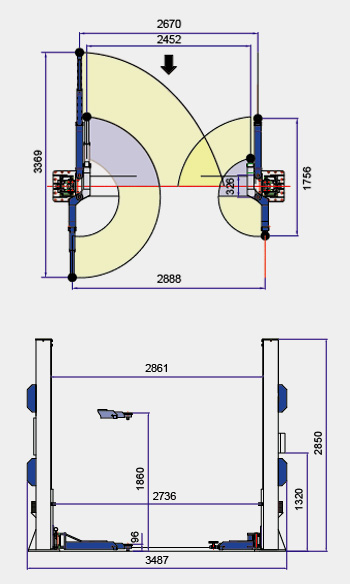

Overall Dimensions
Total Height	2,850 mm
Total Width ( Base Plate )	3,457 mm
Clearance Between Columns	2,736mm
Total Weight	822 kg
Power Supply
Motor Power (400V/3phase + Earth + Neutral) Or (230V/3phase + Earth)	2.2 kW, 50 Hz 2.2 kW, 60 Hz
Control Circuit Voltage	24V DC
Full Load Running Current	5A
Motor Protection	3 fuses (6.3A)
Noise Level	< 70 db
Control Circuit by 1 Fuse Protection	1A
